Dali Opticon Series -Exceptional Performance

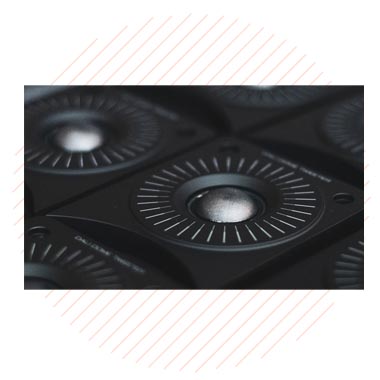

With its hybrid tweeter and SMC-based drivers, the Dali Opticon series delivers superb middle clarity and scintillating high frequencies to any music or movie-watching experience. The OPTICON MK2 series is a portable stand mount speaker that produces exceptional bass performance for its size, blending seamlessly with the natural midrange and high frequency clarity of its drivers.
Industry-Leading Feature
Product Line of the Opticon Series
×
OPTICON 1 MK2 |
Frequency Range [+/- 3] dB [Hz] |
62 - 25.000 Hz |
Sensitivity [2.83V/1m][dB] |
85 dB |
Nominal Impedance[ohms] |
4 ohm |
Maximum SPL [dB] |
105 dB |
Recommended Amp.Power [Watt] |
25-100 Watt |
Crossover Frequency[Hz] |
3.000 Hz |
Crossover Principle |
2-way |
High Frequency Driver |
1 x 29 mm soft dome |
Low Frequency Driver(s) |
1 x 4¾” |
Enclosure Type |
Bass reflex |
Bass Reflex Tuning Frequency [Hz] |
60 Hz |
Connection Input(s) |
Single |
Recommended Placement |
Stand/Shelf/Wall |
Recommended distance
from rear wall to
speaker’s rear panel |
2 - 80 cm
1 - 32 inches |
Dimensions(H x W x D) [mm] |
261 x 152 x 231 mm
10.28 x 6.0 x 9.1 inched |
Weight [kg/lb] |
4.6 kg / 10.1 lb |
Accessories |
Rubber feet,manual |
Finishes |
|
×
OPTICON 2 MK2 |
Frequency Range [+/- 3] dB [Hz] |
59 - 25.000 Hz |
Sensitivity [2.83V/1m][dB] |
86,5 dB |
Nominal Impedance[ohms] |
4 ohm |
Maximum SPL [dB] |
107 dB |
Recommended Amp.Power [Watt] |
30-150 Watt |
Crossover Frequency[Hz] |
2.000 Hz |
Crossover Principle |
2-way |
High Frequency Driver |
1 x 29 mm soft dome |
Low Frequency Driver(s) |
1 x 6½” |
Enclosure Type |
Bass reflex |
Bass Reflex Tuning Frequency [Hz] |
46 Hz |
Connection Input(s) |
Single |
Recommended Placement |
Stand/Shelf |
Recommended distance
from rear wall to
speaker’s rear panel |
10 - 80 cm
4 - 32 inches |
Dimensions(H x W x D) [mm] |
351 x 195 x 297 mm
13.8 x 7.7 x 11.7 inched |
Weight [kg/lb] |
7.7 kg / 16.9 lb |
Accessories |
Rubber feet,manual |
Finishes |
|
×
OPTICON 6 MK2 |
Frequency Range [+/- 3] dB [Hz] |
49 - 30.000 Hz |
Sensitivity [2.83V/1m][dB] |
88 dB |
Nominal Impedance[ohms] |
4 ohm |
Maximum SPL [dB] |
110 dB |
Recommended Amp.Power [Watt] |
25-200 Watt |
Crossover Frequency[Hz] |
800 / 2,200 / 14,000 Hz |
Crossover Principle |
2½+½-way |
High Frequency Driver |
1 x 29 mm soft dome
1 x 17 x 45 mm ribbon |
Low Frequency Driver(s) |
2 x 6½” |
Enclosure Type |
Bass reflex |
Bass Reflex Tuning Frequency [Hz] |
43.5 Hz |
Connection Input(s) |
Bi-wire / Bi-amp |
Recommended Placement |
Floor |
Recommended distance
from rear wall to
speaker’s rear panel |
20 - 100 cm
8 - 39 inches |
Dimensions(H x W x D) [mm] |
1001 x 195 x 330 mm
39.4 x 7.7 x 13.0 inched |
Weight [kg/lb] |
13.3 kg / 42.5 lb |
Accessories |
Spike set, rubber feet, manual |
Finishes |
|
×
OPTICON 8 MK2 |
Frequency Range [+/- 3] dB [Hz] |
38 - 30.000 Hz |
Sensitivity [2.83V/1m][dB] |
88.5 dB |
Nominal Impedance[ohms] |
4 ohm |
Maximum SPL [dB] |
112 dB |
Recommended Amp.Power [Watt] |
40 - 300 Watt |
Crossover Frequency[Hz] |
380 / 2,200 / 14,000 Hz |
Crossover Principle |
3+½-way |
High Frequency Driver |
1 x 29 mm soft dome
1 x 17 x 45 mm ribbon |
Low Frequency Driver(s) |
2 x 8” / 1 x 6½” |
Enclosure Type |
Bass reflex(mid-range closed box |
Bass Reflex Tuning Frequency [Hz] |
29.5 Hz |
Connection Input(s) |
Bi-wire / Bi-amp |
Recommended Placement |
Floor |
Recommended distance
from rear wall to
speaker’s rear panel |
30 - 150 cm
12 - 59 inches |
Dimensions(H x W x D) [mm] |
1141 x 241x 450 mm
44.9 x 9.5 x 18.1 inched |
Weight [kg/lb] |
34.0 kg / 74.9 lb |
Accessories |
Spike set, rubber feet, manual |
Finishes |
|
×
OPTICON LCR MK2 |
Frequency Range [+/- 3] dB [Hz] |
70 - 30.000 Hz |
Sensitivity [2.83V/1m][dB] |
89 dB |
Nominal Impedance[ohms] |
4 ohm |
Maximum SPL [dB] |
109 dB |
Recommended Amp.Power [Watt] |
30-150 Watt |
Crossover Frequency[Hz] |
2.800 / 14.000 Hz |
Crossover Principle |
2+½-way |
High Frequency Driver |
1 x 29 mm soft dome
1 x 17 x 45 mm ribbon |
Low Frequency Driver(s) |
1 x 6½” |
Enclosure Type |
Bass reflex |
Bass Reflex Tuning Frequency [Hz] |
45 Hz |
Connection Input(s) |
Single |
Recommended Placement |
On-wall/Shelf |
Recommended distance
from rear wall to
speaker’s rear panel |
0 - 10 cm
0 - 4 inches |
Dimensions(H x W x D) [mm] |
482 x 285 x 128 mm
19 x 11.2 x 5 inched |
Weight [kg/lb] |
8.0 kg / 17.6 lb |
Accessories |
Rubber feet,manual |
Finishes |
|
×
OPTICON VOKAL MK2 |
Frequency Range [+/- 3] dB [Hz] |
47 - 30.000 Hz |
Sensitivity [2.83V/1m][dB] |
88 dB |
Nominal Impedance[ohms] |
4 ohm |
Maximum SPL [dB] |
109 dB |
Recommended Amp.Power [Watt] |
30-150 Watt |
Crossover Frequency[Hz] |
2.400 / 14.000 Hz |
Crossover Principle |
2+½-way |
High Frequency Driver |
1 x 29 mm soft dome
1 x 17 x 45 mm ribbon |
Low Frequency Driver(s) |
1 x 6½” |
Enclosure Type |
Bass reflex |
Bass Reflex Tuning Frequency [Hz] |
44 Hz |
Connection Input(s) |
Single |
Recommended Placement |
Shelf |
Recommended distance
from rear wall to
speaker’s rear panel |
0 - 30 cm
0 - 12 inches |
Dimensions(H x W x D) [mm] |
201 x 435 x 312 mm
7.9 x 17.1 x 12.3 inched |
Weight [kg/lb] |
9.2 kg / 20.2 lb |
Accessories |
Rubber feet,manual |
Finishes |
|
Find Out More About The Best Dali Products!
Opticon Features
What The Press Say
- "The high-frequency extension was excellent—smooth, with no frequencies that stood out or faded into murkiness. When I used the AudioTest app to do mono sine-wave frequency sweeps, the sound maintained dead centre with no changes to either side. This signifies that the tweeters were well-matched, with no discernible differences within their frequency range."
