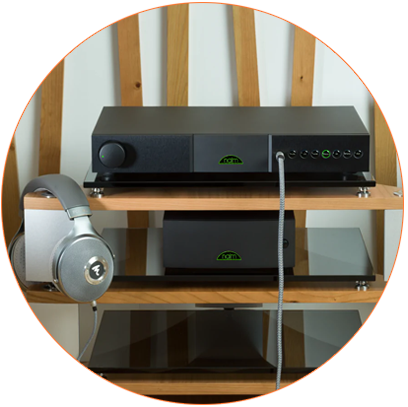

Naim XS Series – Integrated Player
The Naim XS Series is an outstanding next step into the world of hi-fi separates in a slim line enclosure. Offering a wealth of features and a versatile upgrade path, our range of XS Series integrated players take you closer to the true emotion of your music.
Industry-Leading Feature
Spotify® Connect
Bluetooth (aptX HD)
AirPlay
Have Questions About Amplifiers?
Contact Us For Free Consultation:WhatsApp Our Expert!
Product Line of the XS Series
| NAIT XS 3 | |||||||
|---|---|---|---|---|---|---|---|
| Audio Inputs |
|
via RCA, 47k parallel 470pF input impedance, suitable for 5mV cartridges | |||||
|
130mV sensitivity, 47k input impedance, suitable for 2V | ||||||
|
DIN Socket | ||||||
| Audio Outputs |
|
+24V for Naim phono amplifier | |||||
|
70W per channel into 8 ohms (4mm sockets), 100W per channel into 4 ohms | ||||||
|
Pre-amp (DIN), Sub (RCA pair) 775mV, <50 ohms | ||||||
|
AV (DIN), Stream (DIN) 130mV, 600 ohms% | ||||||
|
1/4 inch (6.35mm) TRS Socket | ||||||
| Connectivity |
|
1 x USB mini-B | |||||
|
1 x 3.5mm Jack on rear | ||||||
| Finish |
|
Black powder coated | |||||
|
Brushed and black anodised | ||||||
| Physical |
|
12 kg | |||||
|
200 x 590 x 500 mm | ||||||
|
8.5 kg | ||||||
|
70 x 432 x 314 mm | ||||||
| Power |
|
350VA | |||||
|
115V, 230V; 50 or 60Hz | ||||||
|
16VA | ||||||
| Supplied with |
|
NARCOM-5 Remote Control, Mains Lead, Link Plug and Safety Manual | |||||
| User Control |
|
Volume control and front panel buttons | |||||
|
Infra-Red (RC5) | ||||||
| ND5 XS 2 | |||||||
|---|---|---|---|---|---|---|---|
| Audio Inputs |
|
Chromecast built-in, Apple AirPlay, TIDAL, Spotify® Connect, Bluetooth (AptX HD), Internet Radio, UPnP™ (hi-res streaming), Roon Ready | |||||
|
2 x USB Type A socket (front and rear - 1.6A charge) | ||||||
|
2 x optical TOSLink (up to 24bit/96kHz) 1 x coaxial RCA (up to 24bit/192kHz, DoP 64Fs) 1 x coaxial BNC (up to 24bit/192kHz, DoP 64Fs) |
||||||
| Audio Outputs |
|
1 x RCA pair 1 x 5-pin DIN |
|||||
| Connectivity |
|
Party Mode Streaming: Sync up to six Naim products and control via the Naim app | |||||
|
Update your system wirelessly via the Naim app | ||||||
|
Ethernet (10/100Mbps), WiFi (802.11 b/g/n/ac with external antennae) | ||||||
| Formats |
|
Windows Media-formatted content, MP3, ACC, OGG Vorbis streams and MMS | |||||
|
vTuner premium 5* | ||||||
|
Digital 1 x coaxial BNC WAV - up to 32bits/384kHz FLAC and AIFF - up to 24bit/384kHz ALAC (Apple Lossless) - up to 24bit/384kHz MP3 - up to 48kHz, 320kbit (16 bit) AAC - up to 48kHz, 320kbit (16 bit) OGG and WMA - up to 48kHz (16 bit) DSD - 64 and 128Fs M4A - up to 48kHz, 320kbit (16 bit) Note: Gapless playback supported on all formats. |
||||||
| Physical |
|
Brushed and anodised aluminium | |||||
|
6.6kg | ||||||
| Power |
|
Typical use: 11W Network standby mode: <2W Deep sleep: <0.5W |
|||||
|
100V, 115V or 230V; 50 or 60Hz | ||||||
| Supplied with |
|
Power-Line Lite cable (UK denominations only), 5-pin DIN interconnect cable, BNC to RCA adaptor, Wi-Fi (x2) and Bluetooth antennae, cleaning cloth, quick start guide | |||||
| Upgrades |
|
Power-Line | |||||
| User Control |
|
Naim App for iOS and Android | |||||
Find Out More About The Best Naim Products!
The Companion Products
Power-Line Cables & Interconnects
To us, a smooth, stable, low-noise supply is critical. It’s absolutely fundamental to performance. That’s why we designed the Power-Line mains cable. Its complex, precision-engineered construction has been defined and refined following solid mechanical engineering principles and then confirmed after hundreds of hours of testing in the listening room.
Naim App
To us, a smooth, stable, low-noise supply is critical. It’s absolutely fundamental to performance. That’s why we designed the Power-Line mains cable. Its complex, precision-engineered construction has been defined and refined following solid mechanical engineering principles and then confirmed after hundreds of hours of testing in the listening room.
NAC A5
We’ve long argued the case for simplicity. Simpler hi-fi sounds better, is easier to use and ultimately more rewarding to live with. The Naim Audio app, available on iOS and Android devices, provides simple yet comprehensive control over both your music and the network-connected Naim Audio components used to play it. You can adjust volume, skip, pause and play tracks, scroll through album art, create playlists and store favourite radio stations to be easily accessed later.

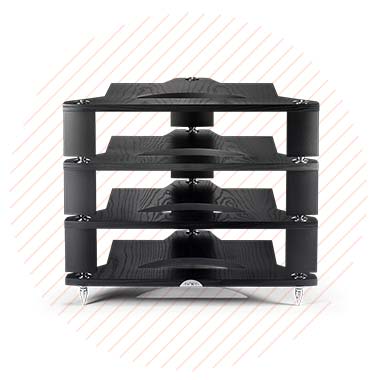

FraimLite
For entry-level Naim Audio systems, our FraimLite features the same tripod-style configuration, carefully optimised shelf spacing and high-quality material construction of our reference-quality Fraim. It retains the cup-and-cone interface system used by its bigger brother too, but omits the dual layer base and ball-bearing decoupled glass shelf. Reference Fraim levels can be incorporated into the same system as FraimLite so that you can upgrade to our top of the range equipment support on a level-by-level basis.
What The Press Say
- “Sounds magnificent across a range of musical styles and partnering headphones, combining fine detail, power and control.”
